A magnetic contactor is an electromechanical switch used in situations when a circuit must be turned on and off, such as when lighting, heaters, and motors are needed to be started. The magnetic contactor handles moving energy from one location to another through the switch contacts.
Discover TeSys, a range of reversing contactors and electrical magnetic switches, designed to make and break current for a variety of applications, including IEC and NEMA. TeSys offers high reliability and a long mechanical and electrical life and comes with a complete line of accessories for motor and load control.
TESYS D
Contactors Are Available From 9 A To 150 A Ac/dc Coil Voltage, 3-pole And 4-pole
TESYS F
High Current Contactors From 115 A To 800 A Designed For Ac-3 Applications 3-pole And 4 Pole

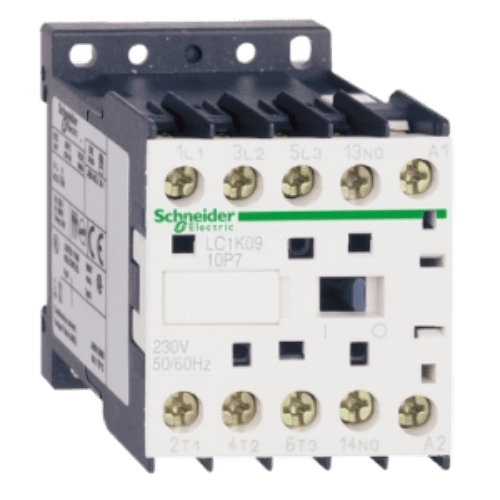

TESYS K
Reversing Contactors Up To 7. 5kw 400/415v , 3-pole And 4-pole
TESYS B
Bar Mounted Contactors Up To 2750 A (900 Kw / 400 V), 3-pole And 4-pole
Features
TeSys GV2 motor circuit breakers provide short circuit protection, overload protection, motor (ON/OFF) control. All functions can work for motors up to 15 KW (GV2RT up to 11 kW) in a 45 mm frame.
GV2ME:
- Thermal-magnetic protection
- Operation with push button
- Standard breaking capacity
GV2P:
- Thermal-magnetic protection
- Operation with rotary handle (extended rotary handle as an option)
- High breaking capacity
- Fault differentiation (short circuit or thermal trip)
GV2L:
- Magnetic protection only
- Operation with rotary handle (extended rotary handle as an option)
- High breaking capacity
GV2LE:
- Magnetic protection only
- Operation with toggle
- Standard breaking capacity
GV2RT:
- Built with high magnetic tripping level, it is highly suitable for high inrush current motors or three phase transformers.
- Operation with toggle
Specifications:
- Maximum 15 current ratings to cover from 0.1 A to 32 A motor current with a IP20 level for finger safety.
- The electrical durability (AC-3/415 V) can reach 100,000 operations as a direct control switch
- Screw clamp for the connection, GV2 ME has two more choices: lug and spring terminals.
- Padlockable in all versions.
- DIN rail mounting or screw fixing
- Multiple choices for “add-on blocks” and accessories such as: contact blocks, electric trips blocks and limiter blocks.
Benefits
Complete protection concentrated in a single product
- Compact (45 mm) and easy to integrate with other control devices
- Durability for the operation as a switch
- Easy to select for different ratings with limited references
Applications
TeSys GV2 can be used for all type of applications across industry, infrastructure and buildings. Compliant to Motor control and protection, in accordance with standards IEC 60947-2, IEC 60947-4-1 and UL 60947-4-1 (transition from UL 508).
GV2RT can be used to protect motors with high current peak on starting or transformer protection.
